Raman spectroscopy combined with chemometric modeling for predicting physicochemical quality and safety attributes of Asgari grapes

Tayyebi, Nazanin; Hashempour, Fataneh; Shojaee-Mend, Hassan; Abdimoghadam, Zohreh

doi:10.22104/ift.2026.8044.2258

Raman spectroscopy combined with chemometric modeling for predicting physicochemical quality and safety attributes of Asgari grapes

نوع مقاله : مقاله پژوهشی

نویسندگان

Nazanin Tayyebi ¹

Fataneh Hashempour ²

Hassan Shojaee-Mend ³

Zohreh Abdimoghadam ⁴

¹ Department of Food Science & Nutrition, medical school, Gonabad university of medical sciences, Gonabad, Iran

² Halal Research Center of IRI, Iran Food and Drug Administration, Ministry of Health and Medical Education, Tehran, Iran

³ Department of General Courses, Faculty of Medicine, Gonabad University of Medical Sciences, Gonabad, Iran

⁴ Food safety and hygiene department, school of health, university of medical science, Gonabad, Iran.

10.22104/ift.2026.8044.2258

چکیده

Rapid and low-waste assessment of grape quality remains a challenge for conventional analytical techniques; Raman spectroscopy combined with chemometric modeling provides a promising alternative for predicting the quality attributes of Asgari grapes. Fifty-five grape samples were collected from vineyards across Gonabad, Iran, and key physicochemical parameters—including pH, titratable acidity (TA), flavonoid content, total soluble solids (TSS), anthocyanin content, and the TSS/TA ratio—were measured. Dimensionality reduction was carried out using principal component analysis (PCA) and partial least squares (PLS), followed by the development of predictive models using multiple linear regression (MLR) and support vector machines (SVM). The dataset was randomly divided into training (80%) and testing (20%) subsets. Model performance was evaluated using the coefficient of determination (R²) and the root mean square error of calibration (RMSEC) and prediction (RMSEP). Among the evaluated models, the PCA–MLR hybrid demonstrated the best predictive performance, achieving R² values of 0.75 for anthocyanins, 0.74 for flavonoids, and 0.65 for TSS, with corresponding RMSEC values of 0.56, 0.67, and 1.51, respectively. These results confirm that Raman spectroscopy is a viable and efficient tool for grape quality assessment and represents a practical alternative to conventional chemical analytical methods.

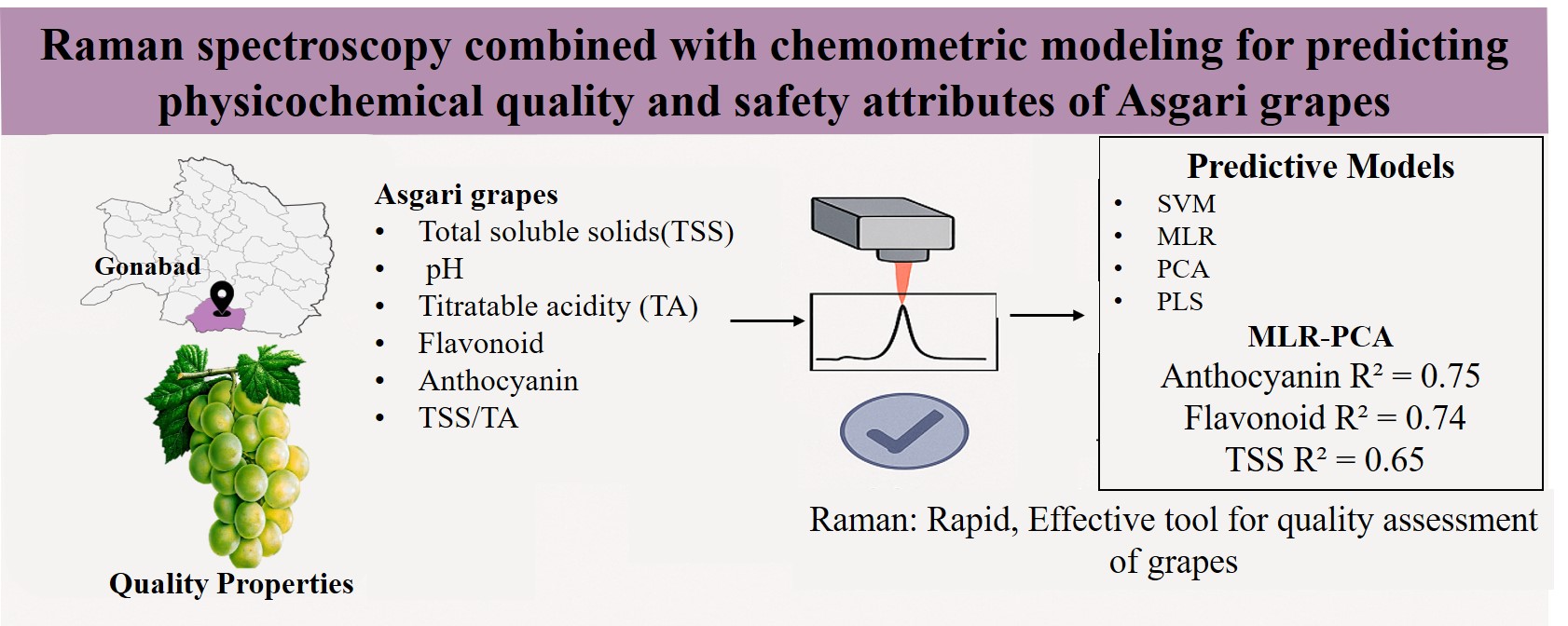

چکیده تصویری

Raman spectroscopy combined with chemometric modeling for predicting physicochemical quality and safety attributes of Asgari grapes

تازه های تحقیق

This study introduces, for the first time in Iran, a rapid and low-waste Raman spectroscopy approach for evaluating the quality of Asgari grapes.
Integrating Raman data with chemometric modeling showed that the PCA–MLR model provides higher accuracy in predicting anthocyanin, flavonoid content, and total soluble solids.
The findings confirm the effectiveness of Raman spectroscopy as a practical alternative to conventional chemical assays for grape quality monitoring.

کلیدواژه‌ها

multivariate analysis

prediction model

quality control

spectral modeling

Vitis vinifera

موضوعات

فناوری های نوین

Ajam, M. (1992). Geography, tribes and minorities in Khorasan. University of Imam Sadegh. [In Persian].

Andersen, P. V., Afseth, N. K., Aaby, K., Gaarder, M., Remberg, S. F., & Wold, J. P. (2023). Prediction of chemical and sensory properties in strawberries using Raman spectroscopy. Postharvest Biol. Technol., 201, 112370.

https://doi.org/10.1016/j.postharvbio.2023.112370

AOAC International. (2019). Official Method 932.12: Refractometric determination of soluble solids in fruit juices. AOAC International.

AOAC International. (2019). Official Method 942.15: Acidimetric determination of titratable acidity. AOAC International.

AOAC International. (2019). Official Method 981.12: Measurement of pH in fruit juices. AOAC International.

Azadshahraki, F., Kalantari, S., & Jamshidi, B. (2018). Nondestructive quality assessment of grape (cv. Asgari) based on NIR spectroscopy. Agric. Mech, 19(70), 13–24. [In Persian] https://doi.org/10.22092/erams.2017.105874.1080

Barbur, V. A. (1994). Introduction to linear regression analysis. JSTOR.

Barnes, R. J., Dhanoa, M. S., & Lister, S. J. (1989). Standard normal variate transformation and de-trending of near-infrared diffuse reflectance spectra. Appl. Spectrosc, 43(5), 772–777. https://doi.org/10.1366/0003702894202201

Crisosto, C. H., Smilanick, J. L., Luvisi, D. A., & Dokoozlian, N. K. (1994). Maintaining table grape post-harvest quality for long distant markets. In Proceedings of the International Symposium on Table Grape Production (pp. 195–199). American Society for Enology and Viticulture.

Daniels, A. J., Poblete-Echeverría, C., Opara, U. L., & Nieuwoudt, H. H. (2019). Measuring internal maturity parameters contactless on intact table grape bunches using NIR spectroscopy. Front. Plant Sci, 10, 1517.

https://doi.org/10.3389/fpls.2019.01517

Draper, N. R. (1998). Applied regression analysis. McGraw-Hill.

Ebrahimi, I., de Castro, R., Ehsani, R., Brillante, L., & Feng, S. (2024). Advancing grape chemical analysis through machine learning and multi-sensor spectroscopy. J. Agric. Food Res, 16, 101085. https://doi.org/10.1016/j.jafr.2024.101085

Food and Agriculture Organization of the United Nations. (2023). The state of food security and nutrition in the world 2023. https://www.fao.org

Fernández-Novales, J., Barrio, I., & Diago, M. P. (2021). Non-invasive monitoring of berry ripening using on-the-go hyperspectral imaging in the vineyard. Agronomy, 11(12), 2534. https://doi.org/10.3390/agronomy11122534

Gabrielli, M., Lançon-Verdier, V., Picouet, P., & Maury, C. (2021). Hyperspectral imaging to characterize table grapes. Chemosensors, 9(4), 71.

https://doi.org/10.3390/chemosensors9040071

Gao, Z., Wang, X., Ma, H., Zhang, H., Xie, J., Liu, F., & Kang, W. (2024). Rapid measurement of anthocyanin content in grape and grape juice: Raman spectroscopy provides non-destructive, rapid methods. Comput. Electron. Agric, 222, 109048.

https://doi.org/10.1016/j.compag.2024.109048

Giusti, M. M., & Wrolstad, R. E. (2001). Characterization and measurement of anthocyanins by UV-visible spectroscopy. Curr. Protoc. Food Anal. Chem, F1.2.1–F1.2.13. https://doi.org/10.1002/0471142913.faf0102s00

Gohari, G., Freydoni, S., Panahirad, S., Sepehri, N., & Dadpour, M. R. (2021). Foliar application of phenylalanine on nutritional value in Vitis vinifera var. Hosseini. Food Res., 30(4), 109–121. https://doi.org/10.22034/fr.2021.37105.1708

Jolliffe, I. T. (2002). Principal component analysis for special types of data. Springer.

Krysa, M., Szymańska-Chargot, M., & Zdunek, A. (2022). FT-IR and FT-Raman fingerprints of flavonoids—A review. Food Chem., 393, 133430.

https://doi.org/10.1016/j.foodchem.2022.133430

Mirfatah, S. M. M., Rasouli, M., Gholami, M., & Mirzakhani, A. (2024). Phenotypic diversity of some Iranian grape cultivars and genotypes (Vitis vinifera L.) using morpho-phenological, bunch and berry traits. J. Hortic. Postharvest Res., 7(2), 115–140. [In Persian]

https://doi.org/10.22077/jhpr.2024.7165.1355

Mirzaei, F., Karimi, R., Rasouli, M., Rostami, M., & Koulivand, M. (2015). Comparison of total soluble solids, total phenols, flavonoids and anthocyanins of five grapevine cultivars in Malayer vineyards. [In Persian].

Nogales-Bueno, J., Baca-Bocanegra, B., Rooney, A., Hernández-Hierro, J. M., Byrne, H. J., & Heredia, F. J. (2017). Study of phenolic extractability in grape seeds by means of ATR-FTIR and Raman spectroscopy. Food Chem., 232, 602–609.

https://doi.org/10.1016/j.foodchem.2017.04.049

Ping, F., Yang, J., Zhou, X., Su, Y., Ju, Y., Fang, Y., Bai, X., & Liu, W. (2023). Quality assessment and ripeness prediction of table grapes using visible–near-infrared spectroscopy. Foods, 12(12), 2364.

https://doi.org/10.3390/foods12122364

Poni, S., Gatti, M., Palliotti, A., Dai, Z., Duchêne, É., Truong, T.-T., Ferrara, G., Matarrese, A. M. S., Gallotta, A., Bellincontro, A., Mencarelli, F., & Tombesi, S. (2018). Grapevine quality: A multiple choice issue. Sci. Hortic., 234, 445–462.

https://doi.org/10.1016/j.scienta.2017.12.035

Radhika, A., & Masood, M. S. (2021). Effective dimensionality reduction by using soft computing method in data mining techniques. Soft Comput., 25(6).

https://doi.org/10.1007/s00500-024-10232-0

Rahimi, A., Shariatifar, N., & Heshmati, A. (2021). Fate of pesticide residues during the grape (Vitis vinifera L.) juice production. Iran. J. Health Environ., 14(3), 413–426. [In Persian].

Rivero, F. J., et al. (2021). A study of overripe seed byproducts from sun-dried grapes by dispersive Raman spectroscopy. Foods, 10(3), 483.

https://doi.org/10.3390/foods10030483

Savitzky, A., & Golay, M. J. E. (1964). Smoothing and differentiation of data by simplified least squares procedures. Anal. Chem., 36(8), 1627–1639.

https://doi.org/10.1021/ac60319a045

Singleton, V. L., Orthofer, R., & Lamuela-Raventós, R. M. (1999). Analysis of total phenols and other oxidation substrates and antioxidants by means of Folin–Ciocalteu reagent. In Methods in Enzymology (Vol. 299, pp. 152–178). Elsevier.

https://doi.org/10.1016/S0076-6879(99)99017-1

Vapnik, V. N. (1999). An overview of statistical learning theory. IEEE Trans. Neural Netw., 10(5), 988–999.

https://doi.org/10.1109/72.788640

Wold, S., Sjöström, M., & Eriksson, L. (2001). PLS-regression: A basic tool of chemometrics. Chemom. Intell. Lab. Syst., 58(2), 109–130.

https://doi.org/10.1016/S0169-7439(01)00155-1

Zhang, Z.-M., Chen, S., & Liang, Y.-Z. (2010). Baseline correction using adaptive iteratively reweighted penalized least squares. Analyst, 135(5), 1138–1146.

https://doi.org/10.1039/B922045C
